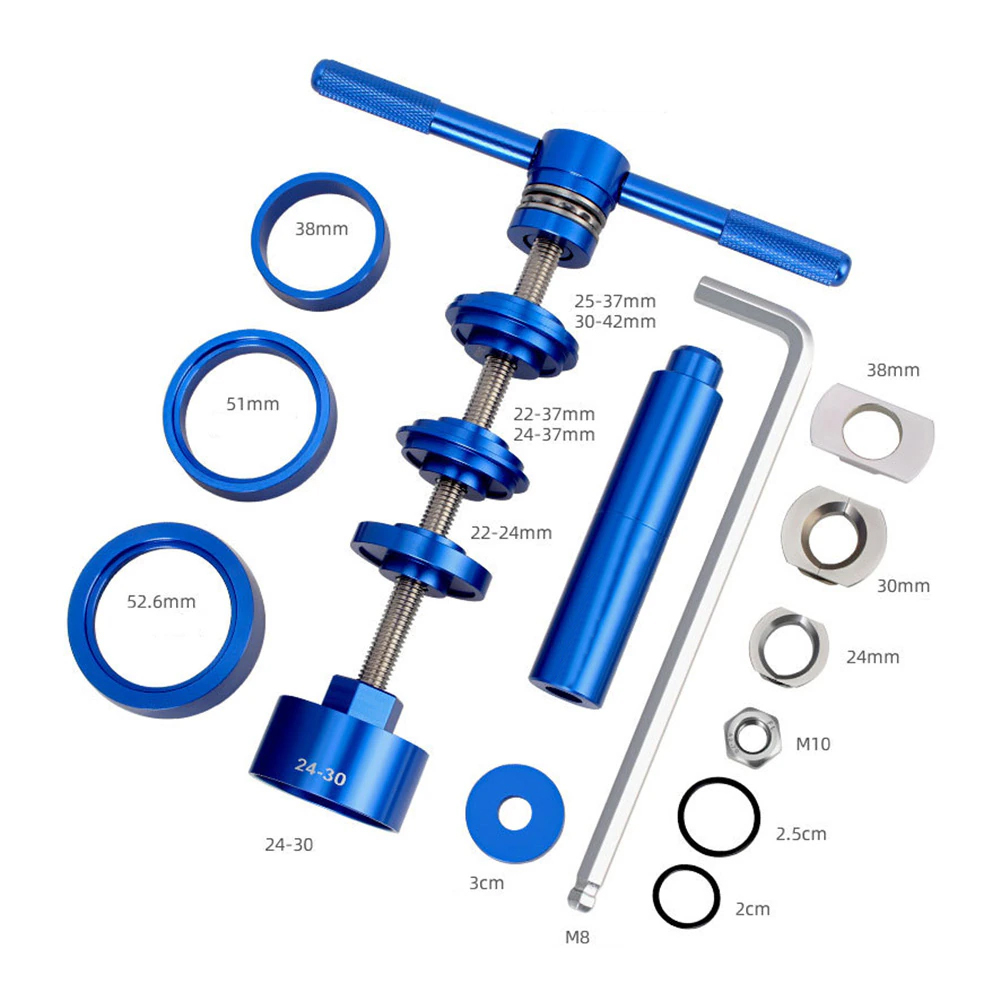

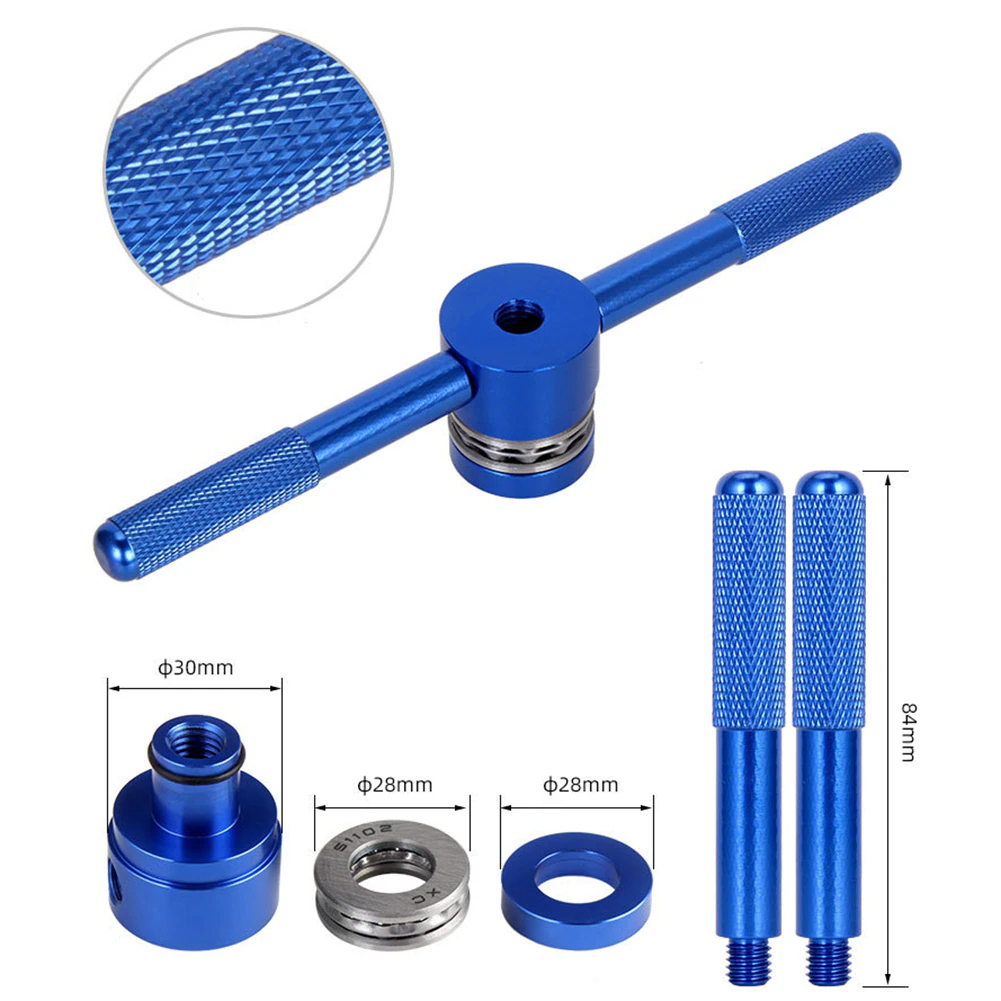

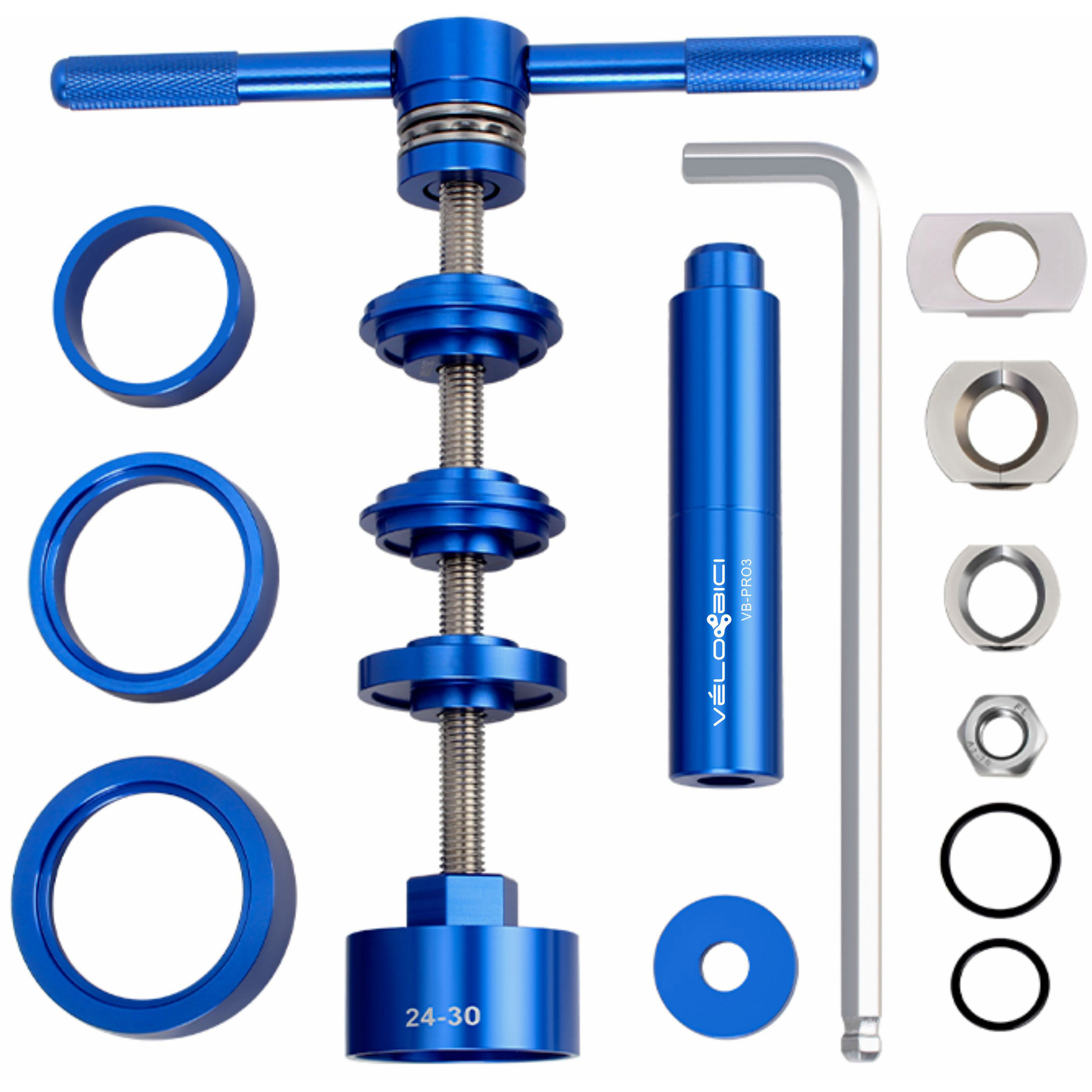

Workshop-level press that is suitable for the disassembly and installation of a range of bottom brackets, bearings and shells (not suitable for headset press)

A kit specially designed for bicycle headset and bottom bracket installation, one-piece bearing design, perfect fit for bicycle headset and bottom bracket, no gap, no static pressure wear, will not damage your bicycle frame and bottom bracket. Let you easily and professionally complete the work.

Applicable to a variety of press-fit bottom bracket specifications, installation, and removal only need this set to meet all needs.

There are some press-fit bottom brackets with aluminum sleeves. When disassembling, there may be a problem that only the bottom bracket bearing can be removed. Because the force of the tool is on the bearing, the aluminum sleeve center axis may cause the bearing to come out first. The aluminum sleeve is still on the frame,

In addition, the outer edge of the bottom bracket is parallel to the edge of the frame's bottom bracket,

Because the tool cannot be fixed at the frame bottom bracket, Therefore, static pressure tools cannot be used.

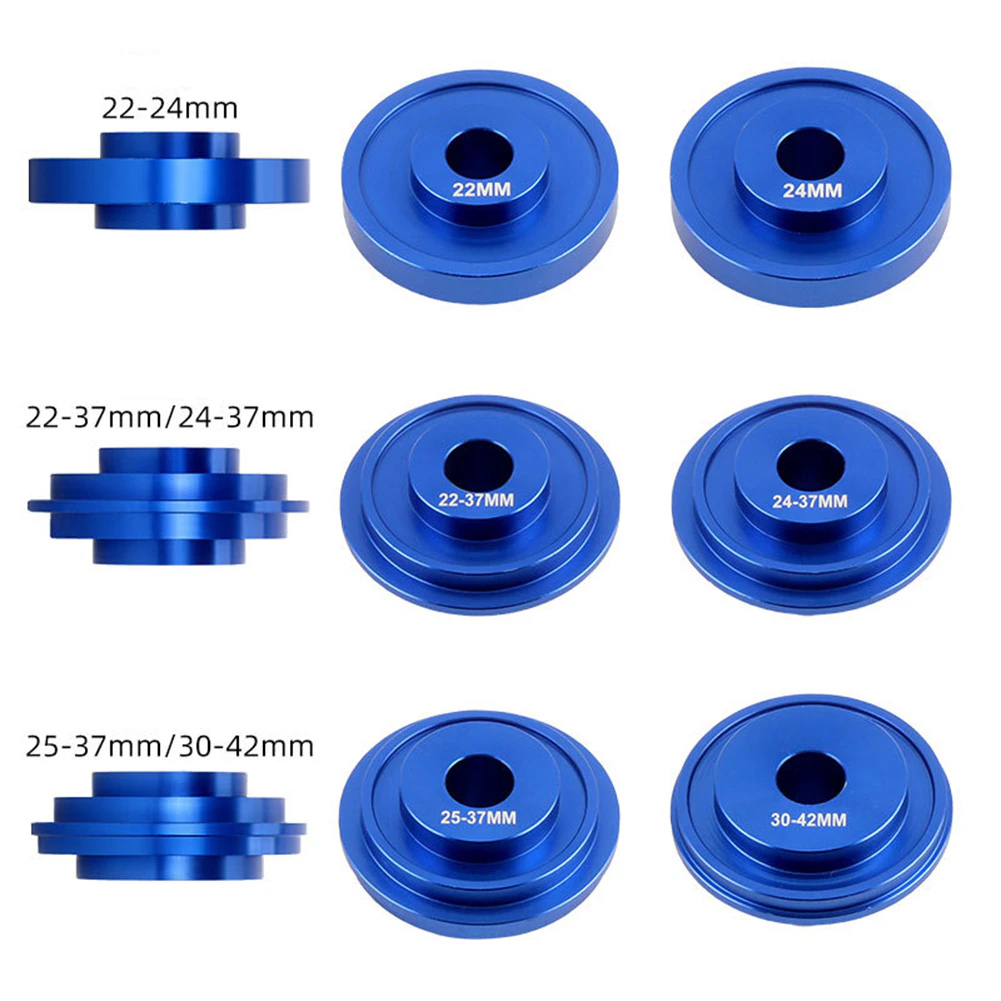

Applicable press-in and removal-bearing specifications:

6805 (25X37X7) Bearing

6806 (30X42X7) Bearing

Press-in BB R92/T86

R30 (BB30 to BB24 converter)

Static press-in and removal of PF30, bbright, BB386 and other bottom brackets (sram's PF30 special bottom bracket)

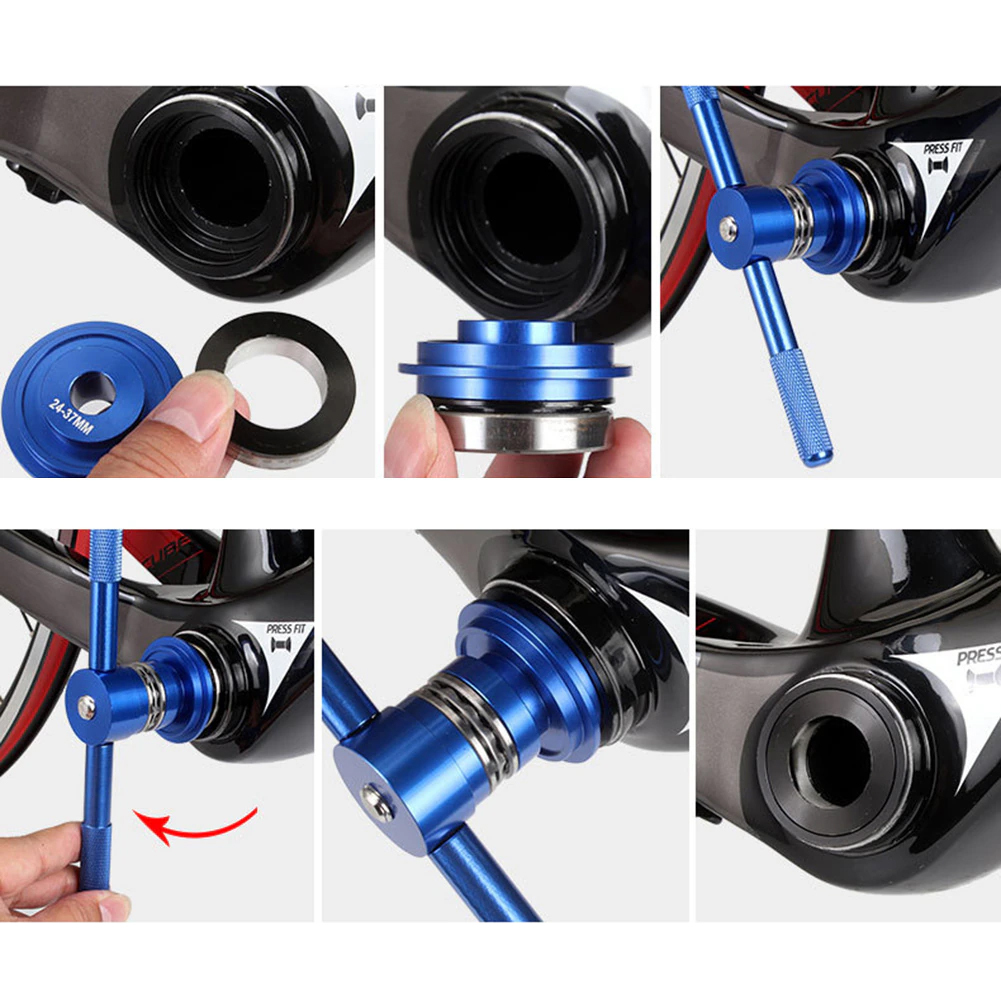

Can be used for the removal and installation of BB86, BB30, BB91, BB92, PF30 and other press-fit bottom brackets

Almost all hollow threaded bottom bracket bearings and BB86, BB30, BB91, BB30 to 24, BB92 and other press-fit bottom bracket bearings can be removed.

Features:

• Aluminum alloy
• Precise CNC turning
• Anodized treatment
• Easy use and installation
